Block Industry
Futuretech Block Industry Portfolio
Comprehensive Solutions for Concrete Block Manufacturing

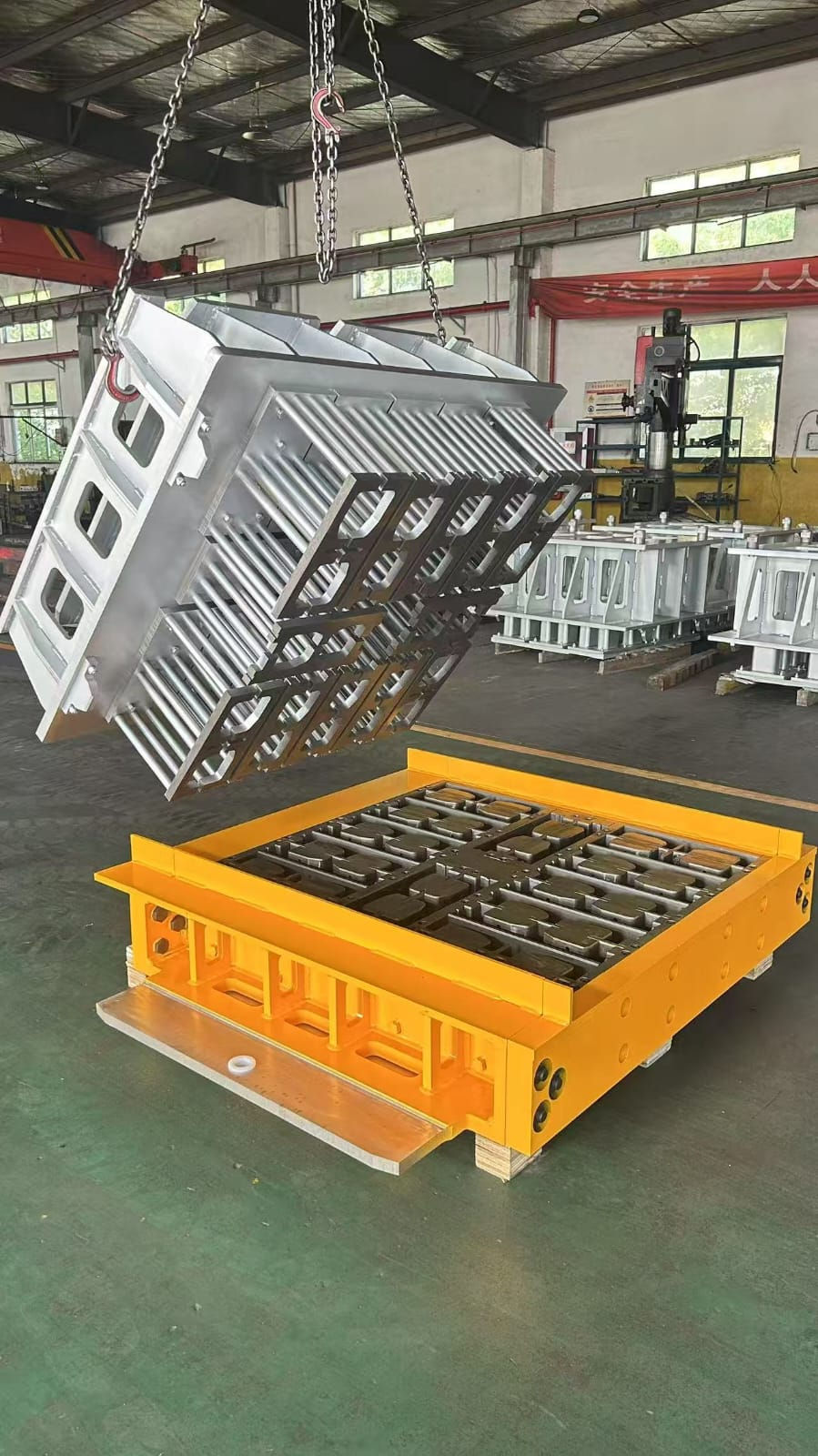

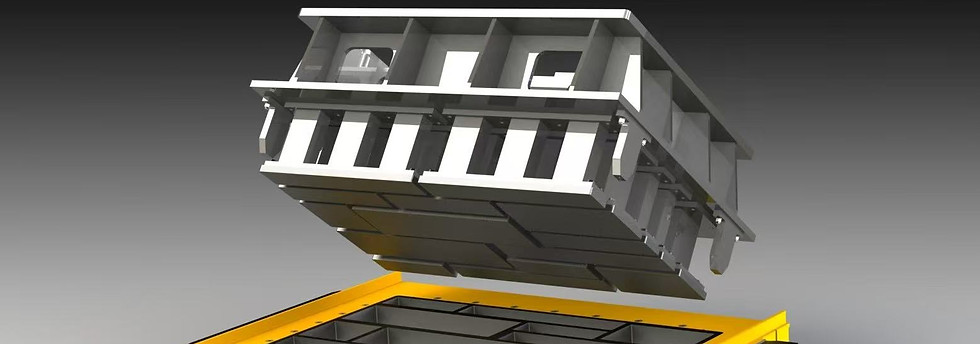

LAIFU Mould - Your Trusted Partner in Concrete Block Production
Futuretech is proud to be the exclusive distributor of LAIFU Moulds in the UAE, bringing world-class mould solutions to the region’s block manufacturing industry. LAIFU stands as a leading brand in the concrete block mould sector, recognized for its precision engineering, durability, and innovation. With over 18 years of manufacturing expertise, LAIFU serves top-tier machine brands such as MASA, HESS, TIGER, BESSER, and POYATOS, ensuring compatibility and performance excellence.
LAIFU moulds are designed for both dry cast and wet press concrete applications, catering to a wide range of products including building blocks, paving stones, retaining walls, and curb stones. Each mould is manufactured using specialized alloy materials and advanced heat treatment processes, resulting in high hardness, minimal deformation, and extended service life. The company’s dedicated R&D team continuously innovates to meet the evolving needs of the industry, offering customized solutions such as detachable cores, hydraulic systems, and texture-mimicking surfaces.
Feature & Specification
-
Material : Specialized alloy steel, heat-treated
-
Compatible Machines : MASA, HESS, TIGER, BESSER, POYATOS, ZENITH, OMAQ, QUADURA
-
Applications : Dry cast & wet press concrete blocks, pavers, curb stones, retaining walls
-
Custom Options : Detachable cores, heating devices, rubber buffers, hydraulic face mix systems
-
Heat Treatment : Vacuum-sealed automatic heat treatment for uniform hardness
-
Delivery Lead Time : Standard: 4-6 weeks | Custom: 6-8 weeks with express options available
Quality is at the core of LAIFU’s operations. The company adheres to stringent international standards and has contributed to the formulation of industry benchmarks such as the “People's Republic of China Building Materials Industry Standard JCT 2094-2021.” With a modern manufacturing facility equipped with German plasma CNC machines, wire cutting systems, and automated heat treatment units, LAIFU ensures every mould meets the highest levels of precision and reliability.
At Futuretech, we understand the importance of timely delivery and operational efficiency. That’s why we offer quick turnaround times and flexible delivery terms to keep your production running smoothly. Whether you need standard moulds or customized designs, our team provides end-to-end support from initial consultation and onsite mounting surveys to after-sales service.
Choose LAIFU through Futuretech for moulds that combine performance, durability, and innovation. Partner with us to elevate your block production quality and productivity in the UAE and beyond.
Key Features
Exclusive LAIFU mould distribution (compatible with MASA, HESS, TIGER, BESSER, POYATOS, ZENITH, OMAG, QUADURA)
Customized mould engineering with detachable cores and hydraulic face mix systems
Industrial brushes for feed drawers, mould cleaning, pallet brushing, and product finishing
Shock-absorbing rubber buffers (multiple Shore hardness levels and configurations)
Screw conveyors (168mm-323mm) for cement, fly ash, and dry material handling
Silo top filtration systems for dust control and environmental compliance
Pneumatic and batter-powered strapping machines for secure block bundling
Onsite mounting surveys, consultation, and after-sales support
Quick turnaround delivery with UAE-based technical assistance
Key Capabilities
Futuretech delivers end-to-end block plant support, including:
Exclusive LAIFU mould distribution (compatible with MASA, HESS, TIGER, BESSER, POYATOS, ZENITH, OMAQ, QUADURA)
Customized mould engineering with detachable cores and hydraulic face mix systems
Industrial brushes for feed drawers, mould cleaning, pallet brushing, and product finishing
Shock-absorbing rubber buffers (multiple Shore hardness levels and configurations)
Screw conveyors (168mm-323mm) for cement, fly ash, and dry material handling
Silo top filtration systems for dust control and environmental compliance
Pneumatic and batter-powered strapping machines for secure block bundling
Onsite mounting surveys, consultation, and after-sales support
Quick turnaround delivery with UAE-based technical assistance
Key Features
Exclusive LAIFU mould distribution (compatible with MASA, HESS, TIGER, BESSER, POYATOS, ZENITH, OMAQ, QUADURA)
Customized mould engineering with detachable cores and hydraulic face mix systems
Industrial brushes for feed drawers, mould cleaning, pallet brushing, and product finishing
Shock-absorbing rubber buffers (multiple Shore hardness levels and configurations)
Screw conveyors (168mm-323mm) for cement, fly ash, and dry material handling
Silo top filtration systems for dust control and environmental compliance
Pneumatic and batter-powered strapping machines for secure block bundling
Onsite mounting surveys, consultation, and after-sales support
Quick turnaround delivery with UAE-based technical assistance

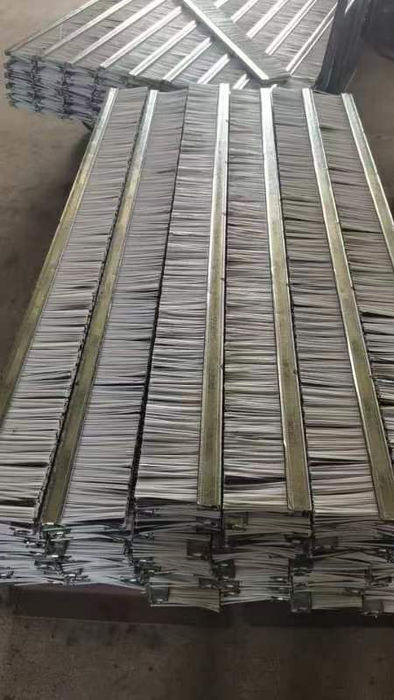

Futuretech Brushes - Engineered for Excellence in Block Manufacturing
In the concrete block industry, brushes play a critical role in maintaining product quality and machine efficiency. Futuretech supplies a comprehensive range of industrial brushes designed for cleaning, deburring, polishing, and sealing applications in block plants. Our brushes are used in feed drawers, mould cleaning, pallet brushing, and green product finishing, ensuring smooth operations and consistent output.
We offer customized brush solutions tailored to your specific machinery and production needs. From coil and strip brushes to spiral roller and tube brushes, our products are manufactured using high-quality materials such as nylon, polypropylene, stainless steel, abrasive filaments, and natural fibers. With Futuretech brushes, you can expect enhanced durability, reduced downtime, and improved surface finish on your concrete products.
Brush Type | Application | Materials Available | Standard Sizes |
|---|---|---|---|
Feed Drawer Brushes | Cleaning tamping heads & feed drawers | Nylon, polypropylene, flat steel wire, hybrid mixes | Bristle length: 85mm / 115mm |
Spiral Roller Brushes | Deburring green products, edge cleaning | Nylon, PP, abrasive nylon, horsehair, sisal | Diameter: 45-103mm | Length: up to 2500mm |
Mould Brushes | Lateral shoe cleaning for curbs | Nylon, metal wire, mixed filaments | Custom shapes per curb type |
Strip Brushes | Sealing, cleaning, polishing | Steel, brass, nylon, abrasive nylon, horsehair, polypropylene | Width: 20-100mm | Base: 2.5-10mm |

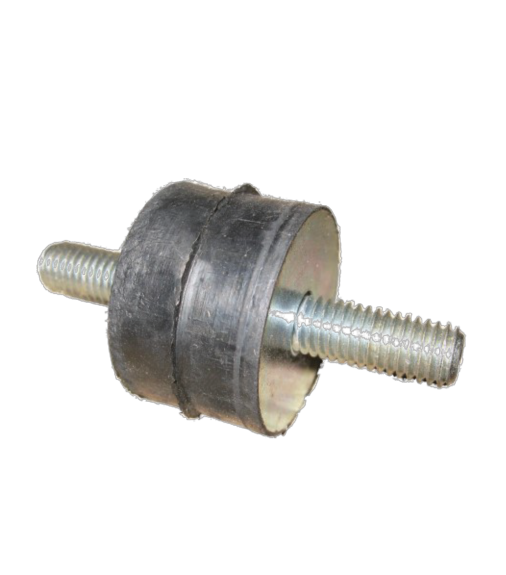

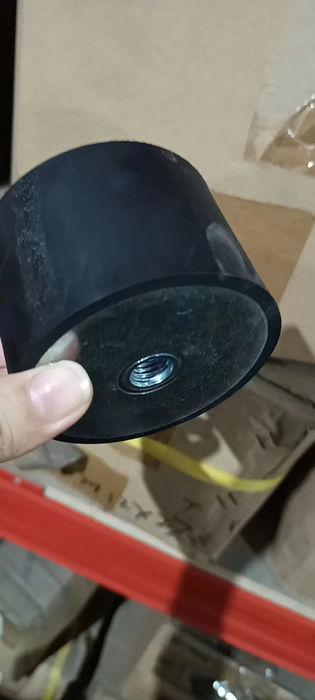

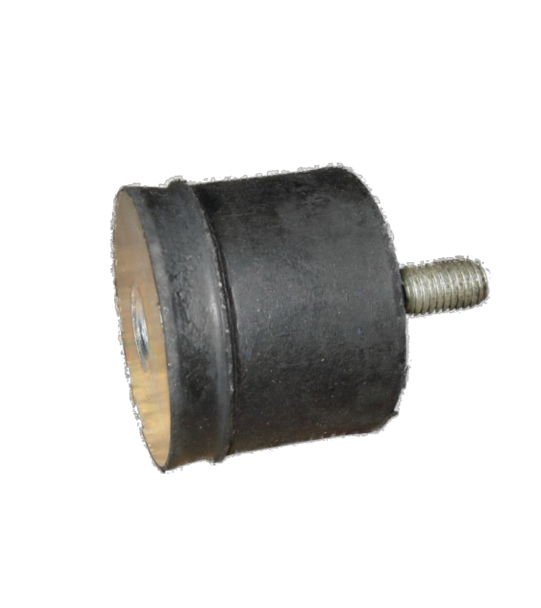

Futuretech Rubber Buffers - Essential for Block Machine Performance
Futuretech Rubber Buffers are vital components in block manufacturing plants, designed to absorb shock, reduce vibration, and protect machinery during high-impact operations. Used in tamping heads, mould frames, and press systems, these buffers ensure smoother machine motion, minimize wear and tear, and extend the lifespan of critical equipment. Available in various hardness levels (Shore A 43, 57, 68) and custom sizes, our rubber buffers are engineered for reliability and performance under demanding production conditions.
Buffer Type | Hardness (Shore A) | Standard Sizes (Dia × Height in mm) | Typical Applications |
|---|---|---|---|
Type A | 43 / 57 / 68 | 20×15, 25×20, 30×30, 40×40, 50×50 | Tamping heads, press systems |
Type B | 43 / 57 / 68 | 15×15, 20 ×20, 25×25, 30×25, 40×30 | Mould frames, vibration units |
Type C | 43 / 57 / 68 | 10×10, 15×20, 20×25, 30×20, 50×30 | Conveyor impacts, machine feet |
Type D/E | 57 (standard) | 30×36, 50×58, 75×89, 115×133 | Heavy-duty shock absorption |
Hexagon Buffers | 57 | HEX-BF1960, HEX-BF1215, HEX-BF1200, HEX-BF1184, HEX-BF1089 | Specialized mounting applications |
Futuretech Batching Plant Spare Parts - Screw Conveyors & Silo Top Filters
Futuretech provides high-efficiency batching plant spare parts to ensure seamless material handling and silo venting in block production facilities. Our Screw Conveyors are engineered for reliable conveying of powders such as cement, fly ash, micro silica, and other dry materials. Available in diameters from 168mm to 323mm and customizable lengths, these conveyors feature continuous flight welding, anti-wear coatings, and adjustable inclination angles (0-45°). Equipped with hanger bearings, sealed end bearings, and flange-mounted gearboxes, they deliver durability and low maintenance for continuous operation.
Parameter & Specification
-
Diameter Range : 168mm - 323mm
-
Length : Custom, as per layout
-
Inclination : 0° - 45° adjustable
-
Flight Type : Continuous welded, pitch variable
-
Motor : TEFC 4-pole SQ cage induction, flange-mounted gearbox
-
Bearings : Hanger bearings & end bearings with seal protection
-
Coating : Anti-wear coating available
-
Inlet/Outlet : Cylindrical, rectangular, or ball socket connections
Model | Body Diameter | Filter Surface | Air Consumption | Weight | Body Material |
|---|---|---|---|---|---|
SILAB24 | 800mm (31.5″) | 24.5 m² (264 sq ft) | 4.5 Nm³/h | 79 kg | SS 430 / 304 / 316 |
SILAB14 | 800mm (31.5″) | 14.0 m² (150 sq ft) | 2.5 Nm³/h | 68 kg | SS 430 / 304 / 316 |
FN Series | 400-1000mm | 1.7-48 m² | Custom | 50-210 kg | SS 304 / 316 / ATEX options |
Our Silo Top Filters are designed to maintain clean air emission and prevent dust pollution in silo storage systems. Available in stainless steel construction with high-filtration media, these filters ensure efficient venting, easy maintenance, and compliance with environmental standards. Models such as the SILAB and FN series offer push-fit cartridge systems, easy-access hinged covers, and optional fan assemblies for enhanced extraction.
Trust Futuretech for robust, reliable batching plant components that optimize your production environment.
Futuretech Strapping Machines - Secure and Efficient Block Bundling
Futuretech offers a range of strapping machines designed for secure and efficient bundling of concrete blocks and pavers. Our Pneumatic Strapping Machines deliver high tensioning force (up to 3500N) and are suitable for 13mm, 16mm, and 19mm PP or PET straps. Lightweight, durable, and easy to operate, these machines are ideal for high-volume applications, providing consistent friction weld seals without the need for seals or consumables.
Model | Strap Width | Max Tension | Power Source | Sealing Method | Weight |
|---|---|---|---|---|---|
ITA 11 | 13mm / 16mm / 19mm | 3500 N | Pneumatic (4.5-7 bar) | Friction weld | 5.6 kg |
Battery ITA 20 | 13mm / 16mm | 2200 N | Li-ion 18V 5Ah | Friction weld | 4.2 kg |
For greater mobility and flexibility, our Battery-Powered Strapping Machines offer cord-free operation with adjustable tension settings (400-2200N). Featuring digital control panels, multiple operating modes (auto, semi-auto, manual), and quick battery swap systems, these tools are perfect for on-site bundling and logistics.
Feature | Pneumatic Model | Battery Model |
|---|---|---|
Tension Range | Up to 3500 N | 400-2200 N |
Operation Modes | Manual | Auto / Semi-auto / Manual |
Strap Compatibility | PP & PET | PP & PET |
Battery Life | - | ~500 cycles per charge |
Ideal For | Fixed stations, high-volume | Mobile use, flexible packaging |
Both pneumatic and battery models from Futuretech ensure safe, reliable, and time-efficient strapping for block and paver packaging.
Industries Served
Futuretech Block Industry solutions serve:
Concrete Block Manufacturers
Paver & Interlock Producers
Precast Concrete Facilities
Industrial Construction Material Suppliers
Infrastructure & Government Projects
Large-Scale Commercial Developments
Our systems are engineered to perform reliably in high-output, continuous production environments across the UAE.
Why?
Download Handbook
Download the Futuretech Block Industry Portfolio for detailed insights on:
-
LAIFU mould specifications and compatibility
-
Industrial brush configurations
-
Rubber buffer hardness and sizing options
-
Screw conveyor and silo filtration systems
-
Strapping machine technical specifications
-
Customization and service support
Download the complete Block Industry solutions handbook.
